Product Description
AMD Ryzen 9 7900X Desktop Processor Specification
CPU Cores 12 CPU Threads 24 Max. Boost Clock Up to 5.6GHz Base Clock 4.7GHz Default TDP 170W Unlocked for Overclocking Yes CPU Socket AM5 Thermal Solution (PIB) Not included PCI Express Version PCIe 5.0 System Memory Type Dual Channel DDR5 Graphics Model AMD Radeon Graphics OS Support Windows 11/10 – 64-Bit Edition

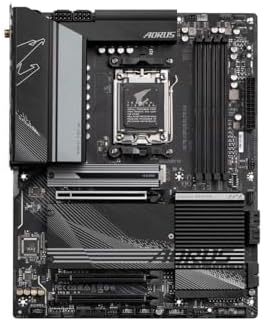

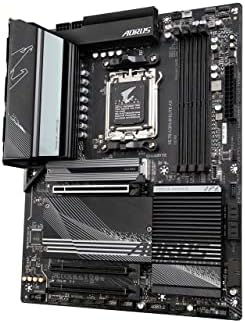

GAGIBYTE X670 AORUS ELITE AX ATX Gaming Motherboard Specification
CPU Socket Type AM5 Memory Support Dual Channel DDR5 up to 192GB ECC Supported Non-ECC Buffer Supported Un-buffered SATA 6Gb/s 4 x SATA 6Gb/s M.2 Slot 1x PCIe 5.0 x4 & 3x PCIe 4.0 x4 Slots USB Support USB 3.2 Gen 2×2 Type C Wireless LAN Wi-Fi 6E Bluetooth Bluetooth 5.2 LED Lighting RGB Form Factor ATX System Support Support for Windows 11/10 64-bit
AMD Socket AM5
X670 AORUS ELITE AX Motherboards are designed specifically for AMD Ryzen 7000 Series Processors. Let’s get ready to usher in the new age of AM5 overclocking with X670 motherboards and AMD Ryzen 7000 series processors.

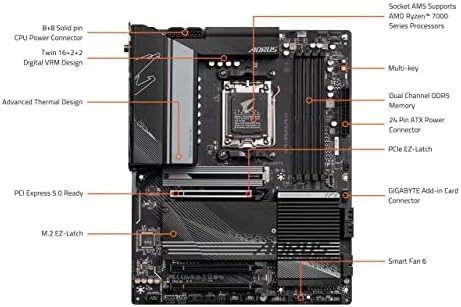

Twin 16+2+2 Digital VRM Design
• 70A Smart Power Stage
• 8-Layer 2X Copper PCB
• PCIe 5.0 Ready Low-Loss PCB
To ensure maximum Turbo Boost and overclocking performance of AMD’s new generation CPU, the GIGABYTE AORUS series motherboard equips the best VRM design ever built with the highest quality components.
Outstanding Thermal Design
Features advanced thermal designs such as an 8mm mega-heatpipe, a new M.2 thermal guard design, and a full-coverage VRM heatsink. The innovative and optimized thermal design is able to ensure the best CPU, Chipset, SSD stability, and low temperatures under full load application and gaming performance.
DDR5-8000 and Beyond
With the XTREME MEMORY technology, X670 AORUS ELITE AX DDR5 memory overclocking capability is able up to 8000MHz and beyond. Users can activate and enable the EXPO/XMP function on the AORUS motherboard to achieve this extreme memory performance boost and enjoy a faster system memory experience.
PCIe 5.0 Design
X670 AORUS ELITE AX motherboard features its PCIe 5.0 design, which doubles the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs released in the next few years to their full capability and the PCIe 5.0 x4 M.2 Slot supports the latest M.2 25110 form factor.

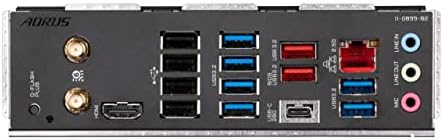

Ultimate Connectivity
• 802.11ax Wi-Fi 6E: Provides smooth video streaming and a better gaming experience
• Intel 2.5GbE LAN: Up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds.
• USB-C: USB 3.2 Gen 2×2 works up to 20Gbps ultra-fast data transfer.
Support AM5 Socket, TDP 170W, L2+L3 cache 76MB, The world’s best gaming desktop processor that can deliver ultra-fast 100+ FPS performance in the world’s most popular games. OS Support Windows 11 – 64-Bit Edition/ Windows 10 – 64-Bit Edition. Cooler & Thermal Solution (PIB) not included
GIGABYTE X670 AORUS Elite Motherboard, ATX Form Factor, Support Dual Channel DDR5 up to 128GB, 2 x M.2 PCIe 4.0 x4 Slot, 4 x SATA 6Gb/s Slot, 2.5GbE LAN chip, Wi-Fi 6E, BLUETOOTH 5.2, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2×2 Type-C, Support for Windows 10/11 64-bit, Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance：Twin 16+2+2 Phases Digital VRM Solution;/ Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support;/ Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors;/ Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design;/ Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax;/ Extended Connectivity：HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support;/ Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP;/ Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
