Price: $509.99
(as of Jun 14,2025 15:05:13 UTC – Details)
Product Description

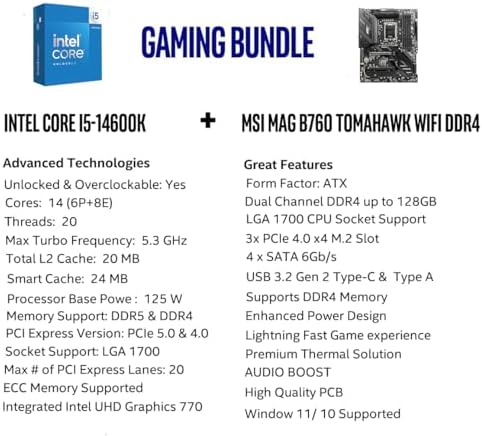

Intel Core i5-14600K CPU Processor Specification
Total Cores 14 Total Threads 20 Max Turbo Frequency 5.3 GHz Cache 24 MB Intel Smart Cache Total L2 Cache 20 MB Maximum Turbo Power 181 W Max Memory Size 192 GB Memory Types DDR5/DDR4 Max # of Memory Channels 2 GPU Integrated Intel UHD Graphics 770 PCI Express Revision 5.0 and 4.0 Sockets Supported FCLGA1700

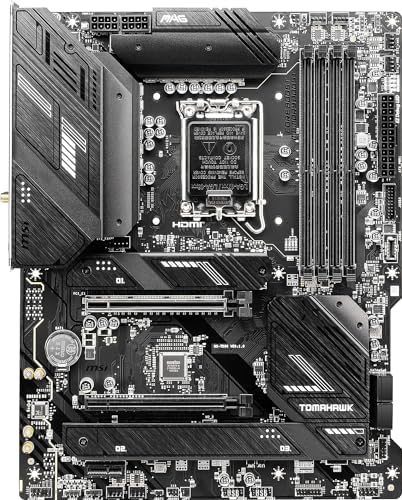

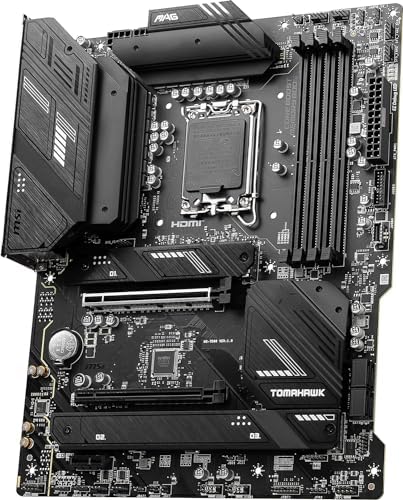

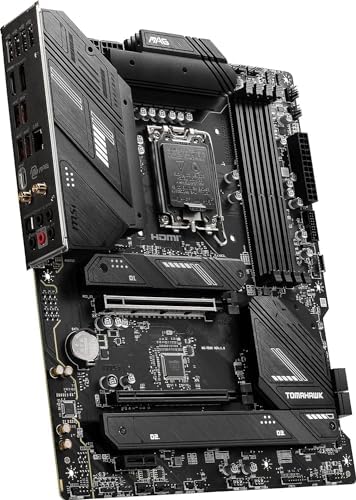

MSI MAG B760 Tomahawk WiFi DDR4 Gaming Motherboard Specification
CPU Socket Support LGA 1700 Memory Support Dual Channel DDR4 up to 128GB M.2 Slot 3*PCIe 4.0 x4 Slot SATA Slot 4x SATA 6GB/s USB 3.2 Gen2 Type A 4 USB 3.2 Gen2 Type C 1 Wireless Lan Intel Wi-Fi 6E Bluethooth Bluetooth 5.3 LED Feature 4x EZ Debug LED Operation System Support for Windows 11/10 64-bit
Supports Intel Core 12th & 13th Gen Processors
The MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATXSocket Type: LGA 1700Chipset: Intel B760
12+1 Duet Rail Power System with 75A DrMOS
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC12-Phase Duet Rail CPU Power (DrMOS / 75A)1-Phase GT Power1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
4 x DDR4 Dual Channel (5333 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
1 x PCI-e 3.0 x16 slot*
*Supports x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The MAG B760 TOMAHAWK WIFI motherboard features MSI’s Gen4 M.2 slots:
3 x Gen4 x4 64Gbps slots*
*3 with M.2 Shield Frozr
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.3

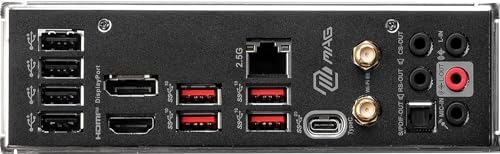

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
PCIe Gen 5.0 & 4.0 Support, Support Dual Memory Channel up to 192 GB, 89.6 GB/s max memory bandwidth, Max # of PCI Express Lanes: 20, Thermal Solution Specification PCG 2020A, ECC memory supported, Built-in Integrated Intel UHD Graphics 770, No thermal solution included
MSI MAG B760 Tomahawk WiFi DDR4 Gaming Motherboard, LGA1700 CPU Socket Support, ATX Form Factor, Supports Dual-Channel Maximum Memory Capacity 128GB, 3x M.2 PCIe 4.0 x4 Slots, 4x SATA 6Gb/s, USB 3.2 Gen2 Type C & Type A, Realtek 2.5Gbps LAN, Intel Wi-Fi 6E, Supports Bluetooth 5.3, Support for Windows 11/10 64-bit, Support Intel Core 14th/ 13th/ 12th Gen Processors
Supports DDR4 Memory, up to 5333+(OC) MHz;/ Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost;/ Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2;/ Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works;/ AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience;/ High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
